更新時間：2015-11-25
|

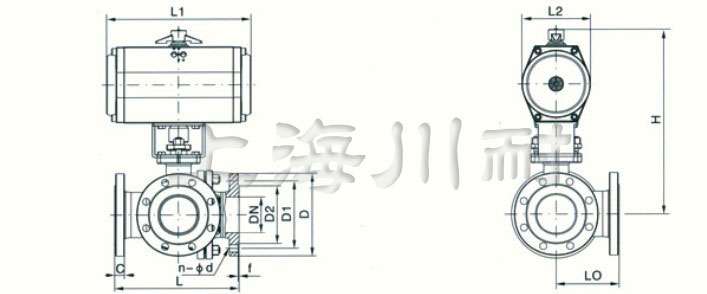

通徑
|
外形尺寸
|
連接法蘭尺寸
|
||||||||||
|
DN
|
in
|
L
|
L1
|
L2
|
H
|
D
|
D1
|
D2
|
C
|
f
|
n-φd
|
|
|
15
|
1/2
|
130
|
140/178
|
62/75
|
185/191
|
95
|
65
|
46
|
14
|
2
|
4-φ14
|
|
|
20
|
3/4
|
150
|
164/214
|
75/91
|
197/225
|
105
|
75
|
56
|
16
|
2
|
4-φ14
|
|
|
25
|
1
|
180
|
164/214
|
75/91
|
199/227
|
115
|
85
|
65
|
16
|
2
|
4-φ14
|
|
|
32
|
11/4
|
200
|
190/295
|
91/112
|
240/266
|
140
|
100
|
76
|
18
|
3
|
4-φ18
|
|
|
40
|
11/2
|
220
|
210/295
|
101/112
|
255/271
|
150
|
110
|
84
|
18
|
3
|
4-φ18
|
|
|
50
|
2
|
240
|
247/340
|
112/127
|
286/307
|
165
|
125
|
99
|
20
|
3
|
4-φ18
|
|
|
65
|
21/2
|
260
|
276/398
|
127/139
|
330/335
|
185
|
145
|
118
|
20
|
3
|
4-φ18
|
|
|
80
|
3
|
280
|
308/438
|
139/159
|
349/383
|
200
|
160
|
132
|
20
|
3
|
8-φ18
|
|
|
100
|
4
|
320
|
348/562
|
159/206
|
421/487
|
220
|
180
|
156
|
22
|
3
|
8-φ18
|
|
|
125
|
5
|
380
|
432/724
|
176/228
|
485/557
|
250
|
210
|
184
|
22
|
3
|
8-φ18
|
|
|
150
|
6
|
440
|
524/928
|
228/275
|
582/629
|
285
|
240
|
211
|
24
|
3
|
8-φ22
|
|
|
200
|
8
|
550
|
648/1033
|
275/324
|
702/750
|
340
|
295
|
266
|
24
|
3
|
12-φ22
|
|
